Commercial Capturing and Monitoring
This is the descriptive layer



An application used to store information on all potential students and evaluate them.

The applications for commercial capturing and monitoring have three access ways:

Telephone: through the SIEBEL application, with a switchboard connected for student cards.

Web: uses the PCRM application to capture data and it transfers them to SIEBEL afterwards.

E-mail address: directly to SIEBEL.

All the information collected ends up in SIEBEL and this is the application used to work with it. It is a market application whose aim it is to monitor prospective students and to automate subsequent contacts. PCRM is the access tool with GAT or PIOLIN, and it is prior to entry into academic systems. There is a catwalk connecting both applications (PL/SQL) and some transfer modules of SIEBEL.

Architecture of the PCRM Application

Administrative part: Client/Server* technology

Graphic of the architecture of the administrative part: Client/Server* technology

Web part: three-layered technology

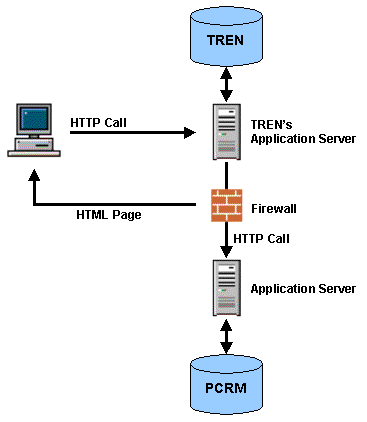

  Graphic of the architecture of the Web part: three-layered technology

Development and Design Tools

PL/SQL

Oracle Developer Forms 6.0 (Programming tool)

Oracle 9i Database

Diagram of the SIEBEL application

  Diagram of the SIEBEL application

The SIEBEL application includes:

a pool of contacts and of all the actions carried out there, such as phone calls, or e-mails, and the state of interest of the UOC's academic offer;

all the protocols that need to be followed in order to offer the various services to the student, e.g., in the matriculation process, the application supports the counsellor in the student's administrative tasks;

all the protocols for the follow up of contacts.





BackUp
